  Hose Handling Slings
| Abstract |
Code Number |
Hose
Diameter |
Sling Width |
Sling
Length |
Choker
Capacity (lbs.) |
| APOLLOFLEX hose
must be properly supported. APOLLO Hose Handling slings are designed for cargo hose and
should be used in choker hitch only. Use
one sling for every fifteen feet of hose. These
slings support the hose properly, eliminating kinking and cutting. APOLLO Hose Handling
Slings are fabricated of 100% nylon. Specify Code Number from this
table when ordering. |
HH-0 |
3" |
4" |
40" |
3,000 |
| HH-1 |
4" |
4" |
42" |
3,000 |
| HH-3 |
6" |
6" |
54" |
4,000 |
| HH-4 |
8" |
8" |
60" |
5,000 |
| HH-5 |
10" |
10" |
108" |
6,000 |

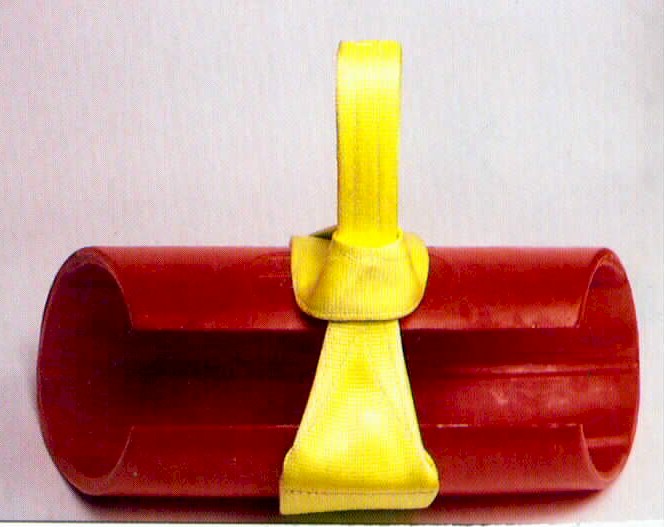

WIDE SUPPORT HOSEBUN
Abstract |
Code Number |
Hose Diameter |
Length |
Sling Width |
Sling Length |
Choker Capacity (lbs.) |
APOLLOFLEX hose must be properly
supported. APOLLO hosebuns are designed to hold cargo hose at the appropriate bend radius.
APOLLO hosebuns are fabricated with 100% urethane.
Specify Code Number from this table when ordering. |
HB3-3 |
3" |
9.8" |
1.75" |
30.5" |
1,500 |
| HB4-3 |
4" |
11.5" |
1.75" |
34.5" |
1,500 |
| HB6-15 |
6" |
21.5" |
4.00" |
39.0" |
8,000 |
| HB8-20 |
8" |
30.0" |
6.00" |
50.0" |
12,000 |
HB10-25 |
10" |
41.0" |
8.00" |
62.0" |
15,000 |

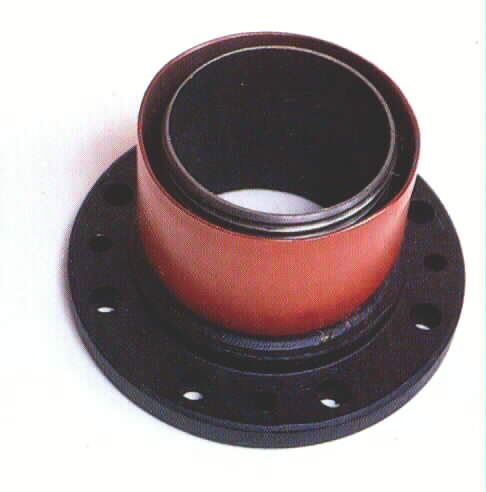

 APOLLOFLEX END
FITTINGS
| TYPE |
PICTURE |
SIZE |
MATERIAL |
ATTACHMENT |
Fixed Flanges ASA or DIN or TTMA
LARGE BORE |
|
1" to 10" |
Carbon Steel
Stainless Steel |
Carbon Steel Ferrule |
Floating Flanges ASA or DIN or TTMA
LARGE BORE |
|
1" to 10" |
Stub End Carbon Steel
Stub End Stainless Steel
Flange Carbon Steel
Flange Stainless Steel |
Carbon Steel Ferrule |
Male Threaded Nipple NPT or BSP
SMALL BORE |
|
1" to 8" |
Carbon Steel
Stainless Steel |
Carbon Steel Ferrule |
Female Threaded Swivel Nut Coupling NBT or
BSP
SMALL BORE |
|
1" to 4" |
Carbon Steel
Stainless Steel |
Carbon Steel Ferrule |
| Male Quick Disconnect Adaptor |
|
1" to 6" |
Aluminum
Stainless Steel |
Carbon Steel Ferrule |
| Female Quick Disconnect Adaptor |
|
1" to 6" |
Aluminum
Stainless Steel |
Carbon Steel Ferrule |
|
