COMPOSITE HOSE - RUBBER HOSE - METAL HOSE - HYDRAULIC HOSE - COUPLINGS - EXPANSION JOINTS

MARINE & INDUSTRIAL  SPECIALTY PRODUCTS

New York: 718-273-7300       Houston: 713-926-2200

Marine & Industrial Applications

Couplings &  Accessories

Hose Accessories
Product Information Page

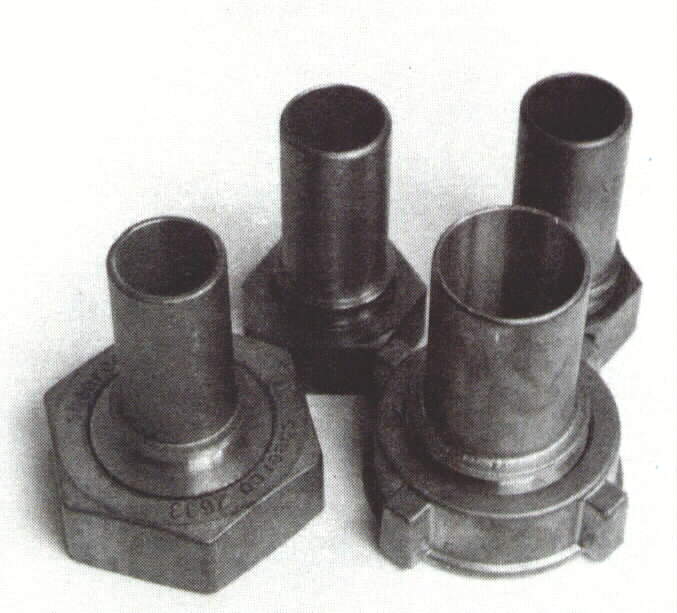

APOLLO Style 607
THREADED COUPLINGS

Apollo Style 607 female non-sparking forged brass contour construction, 360 degree safety collar, interlocking clamp grounded to two static wires. Recessed machined brass nuts and bolts.


Apollo Quick Disconnect Couplings

Part Number

Shank x Coupler
6158-1520QC

1 1/2" x 2"
6158-2020QC

2" x 2"
Part Number Shank x Thread
607-BS1515H 1 1/2" x 1 1'2 " BSP Hex
607-BS1520H 1 1/2" x 2" BSP Hex
607-NS1515H 1 1/2" x 1 1/2" NST Hex
607-NS1520H 1 1/2" x 2" NST Hex
607-NS1525H 1 1/2" x 2 1/2" NST Hex
607-NS2025H 2" x 2 1/2" NST Hex
607-NS2025L 2" x 2 1/2" NST Lug
607-NP1515H 1 1/2" x 1 1/2" NPT Hex
607-NP1520H 1 1/2" x 2" NPT Hex
607-VP1520H 1 1/2" x 2" VP Hex
607-VP2020H 2" x 2" VP Hex
607-DA1520H 1 1/2" x 2" Dasic Hex
607-DA2020H

2" x 2" Dasic Hex

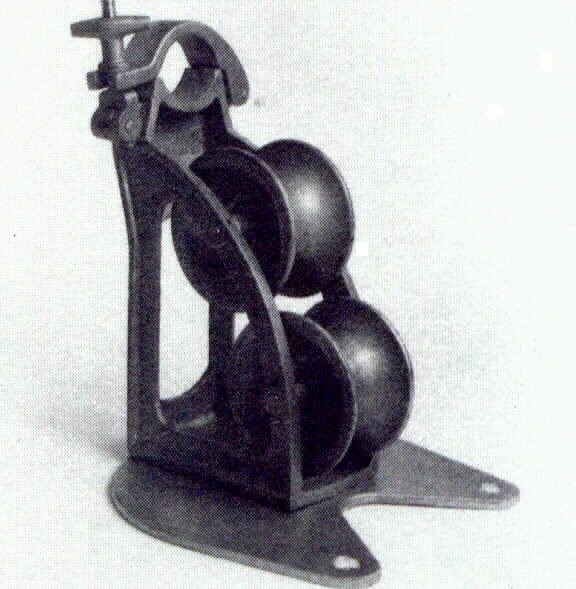

APOLLO Style 2633
HOSE SADDLE

Used to prevent tank cleaning hose from kinking. Clamp secures hose in proper position directly over hatch. Aluminum and brass construction.


APOLLO Style 4662
SIAMESE WYE

Used to connect two tank cleaning hoses to water outlet. Standard is cast brass, 2 1/2" NST thread. Other sizes and threads available.
Please specify.

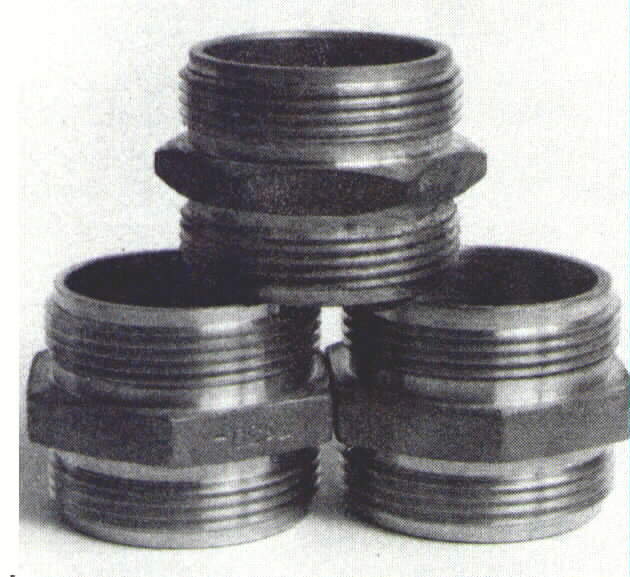

APOLLO Style 6742
DOUBLE MALE

Double male tank cleaning adaptor for joining tank cleaning hoses. Standard is cast brass, 2 1/2" NST thread. Other sizes and threads available.
Please specify.
