Marine &
Industrial Applications |
 Tapes & Instant Packing & Gasket Material
|
|
|
APOLLO
Instant Packings
Product Information Page |
|
|
|
|
|
|
Fiberglass,
Ceramic & Non-Fiber Textiles
|

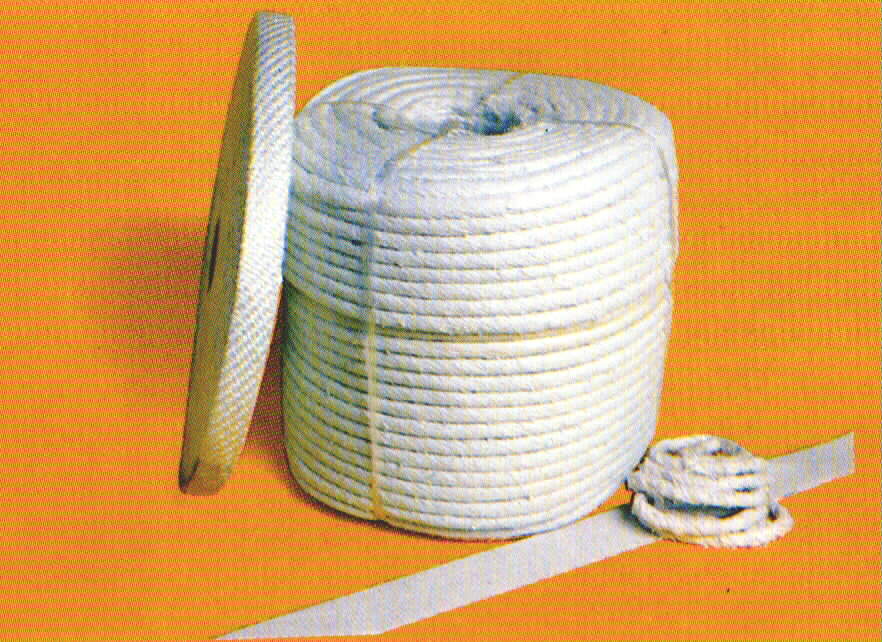

SERIES 800 FIBER TEXTILE
| Description |
Apollo
800 fiber textiles are available in dry woven gasket cloth (Style
800); dry
woven tape (Style
850) and
round twisted rope (Style
825). These
items have numerous uses in insulating and packing applications. |
| USE |
Insulating
and Packing Applications |
| Temperature
Limit |
500° F
(260° C) |
SERIES 700 FIBERGLASS TEXTILES
| Description |
Apollo
700 fiberglass textiles are available in dry woven gasket cloth (Style
700); dry
woven tape (Style
750); and
round twisted rope (Style
725). |
| USE |
Insulating
and Packing Applications |
| Temperature
Limit |
1000° F
(540° C) |
SERIES 900 CERAMIC TEXTILES
| Description |
Apollo
900 ceramic textiles are available in dry woven gasket cloth (Style
900); dry
woven tape (Style
950); and
round twisted rope (Style
925) |
| USE |
Insulating
and Packing Applications |
| Temperature
Limit |
2300° F
(1260° C) |
|
| |
|
|
|
|
|
|

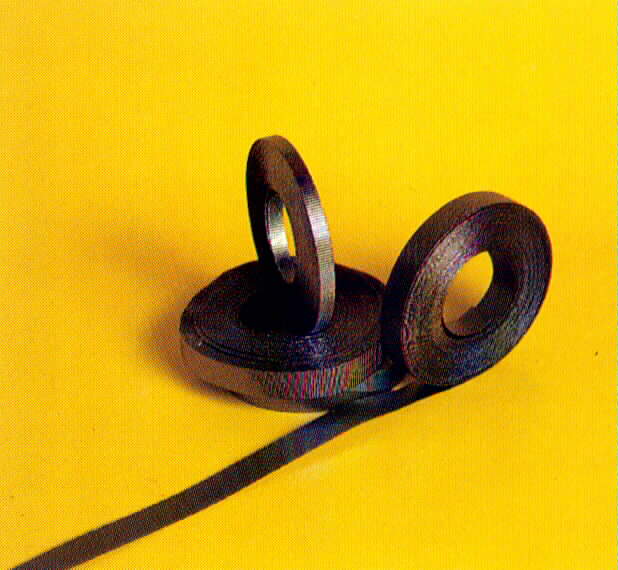

APOLLOPAK 401
| Description |
Style
401 is a pure graphite material which comes in tape form allowing
it to be used in emergency applications where the appropriate
packing is not available. It also makes an ideal steam valve
packing. Its resistance to chemicals and high temperatures as well
as its low coefficient of friction gives Style 401 other unique
advantages as well. |
| USE |
Most
Valve and Pump Services |
| Temperature
Limit |
5000° F
(2760° C)
1200° F (650° C) in steam |
| pH
Range |
0
- 14 |
| Shaft
Speed |
Unlimited |
| SPECS |
MIL-T-27730A |
|
| |
|
|
|
|
|
|

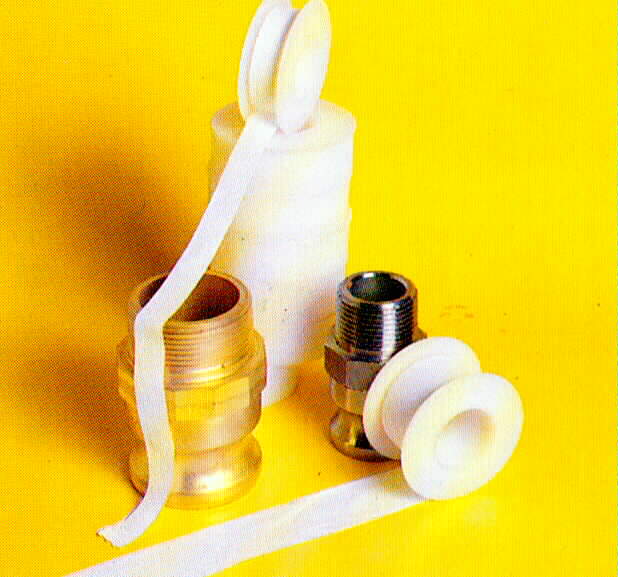

APOLLO ALLSEAL
| Description |
Allseal
is a pure PTFE premium quality thread seal tape. This tape meets
MIL-T-27730A and is available in 520" rolls in widths of
1/2" and 1" |
| USE |
General
Purpose Thread Sealing. |
| Temperature
Limit |
500° F
(260° C) |
| pH
Range |
0 - 14 |
| SPECS |
MIL-T-27730A |
|
| |
|
|
|
|
|
|

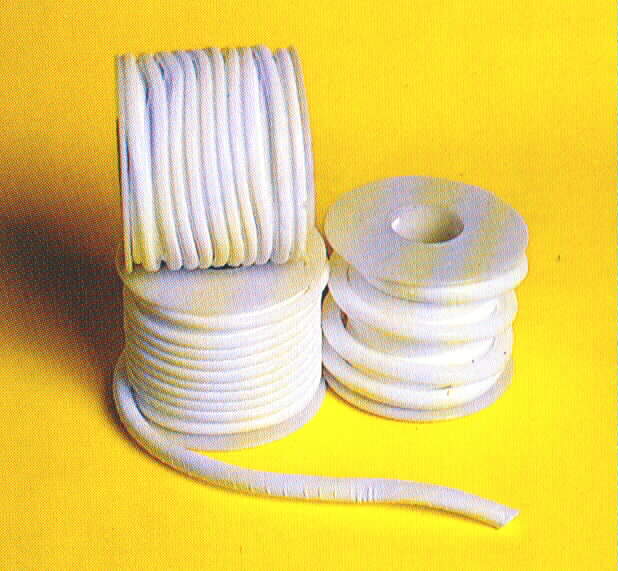

APOLLO ALLJOINT
| Description |
Alljoint
is a pure PTFE cord-like material suitable for valve service and
as an instant gasket. Particularly good when used as a gasket for
odd-shaped flanges by laying around face and bolts. Available in
3/32", 5/32", 7/32", and 9/32" diameters. |
| USE |
Chemical
Valve Packing or "Instant Gasket". |
| Temperature
Limit |
500°
F (260° C) |
| pH
Range |
0
- 14 |
APOLLO EXPANDED ALLJOINT
| Description |
Expanded
Alljoint is made of revolutionary expended PTFE material that
offers all the advantages of PTFE but adds far greater resiliency.
In addition, Expanded Alljoint is adhesive-backed, assuring easy
and precise installation. Available in 1/4" 1/2" and
various other widths. |
| USE |
Instant
Gasket. |
| Temperature
Limit |
500° F
(260° C) |
| pH
Range |
0 -14 |
|
|
|
|
|
|
|
|
|
|
|
|
|
New
