METAL HOSES

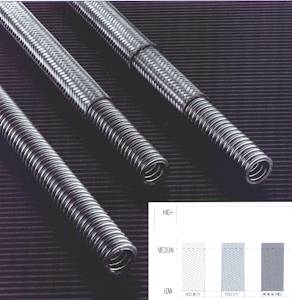

Annuflex is the foundation of Apollo's extensive line of annular hydroformed products. The hydroforming process produces a hose with minimal residual stress, uniform wall thickness throughout the corrugations, and minimal work hardening. This process provides a very flexible, long lasting corrugated metal hose.

Inside Diameter (in.)	Number of Braids (#)	Outside Diameter (in.)	Static Min. Bend Radius (in.)	Dynamic Min. Bend Radius (in.)	Maximum Working Pressure (psi)	Burst Pressure (psi)	Weight Per Foot (lbs.)
1/4	0 1 2	0.41 0.47 0.53	1.0	4.5	90 1800 2700	- 7233 9100	0.04 0.11 0.18
3/8	0 1 2	0.65 0.71 0.77	1.2	5.0	70 1558 2336	- 6230 9345	0.10 0.20 0.30
1/2	0 1 2	0.77 0.83 0.89	1.5	5.5	70 1186 1779	- 4743 7115	0.11 0.22 0.33
5/8	0 1 2	0.96 1.02 1.08	1.8	7.0	57 1205 1808	- 4820 7230	0.17 0.33 0.49
3/4	0 1 2	1.16 1.22 1.28	2.1	8.0	43 898 1347	- 3591 5387	0.19 0.37 0.55
1	0 1 2	1.47 1.53 1.59	2.7	9.0	43 718 1077	- 2872 4308	0.26 0.50 0.74
1 1/4	0 1 2	1.75 1.83 1.91	3.1	10.0	43 645 968	- 2581 3872	0.29 0.61 0.93
1 1/2	0 1 2	2.08 2.16 2.24	3.9	11.0	28 531 797	- 2125 3188	0.47 0.85 1.23
2	0 1 2	2.61 2.69 2.77	5.1	13.0	14 449 674	- 1797 2696	0.59 1.11 1.63
2 1/2	0 1 2	3.40 3.50 3.60	6.8	16.0	14 417 626	- 1669 2504	0.84 1.64 2.44
3	0 1 2	3.88 3.98 4.08	7.8	18.0	14 346 519	- 1384 2076	1.18 2.06 2.94
4	0 1 2	4.96 5.06 5.16	9.8	22.0	14 299 448	- 1194 1791	1.41 2.47 3.53
5	0 1 2	6.00 6.12 6.24	12.8	28.0	14 275 412	- 1099 1649	2.18 3.61 5.04
6	0 1 2	7.01 7.13 7.25	14.8	32.0	11 210 315	- 839 1259	2.69 4.44 6.19
8*	0 1	9.08 9.44	20.0	40.0	3 212	- 850	5.32 7.66
10*	0 1	11.10 11.49	25.0	50.0	2 175	- 700	8.71 12.65
12*	0 1	13.22 13.51	30.0	60.0	2 160	- 640	11.58 17.53

* Supplied with braided braid.
Notes: The minimum bend radius is measured from the centerline of the hose. The minimum bend redius increases with pressure. The working pressure decreases with temperature. For rapid pressure fluctuations consult APOLLO.
