    Marine  Applications

 Marine Fire Safety



Nozzles, Tips, Fire Hoses
Product Information Page





Coast Guard & Navy Nozzles & Nozzle Tips




Combination fog and straight stream nozzles for shipboard firefighting, using water drafted over the side. Coast Guard nozzles are required for all vessels under United States registry. Fog tip included with each nozzle. Additional fog tips available - tips are  shown on this page. Tip PART Numbers are shown below. Coast Guard nozzles are furnished with NST thread; Navy nozzles with Navy thread.



APOLLO STYLE SG71 / SG70




Nozzle No. Type SIZE TIP NO. COAST GUARD / BUSHIPS

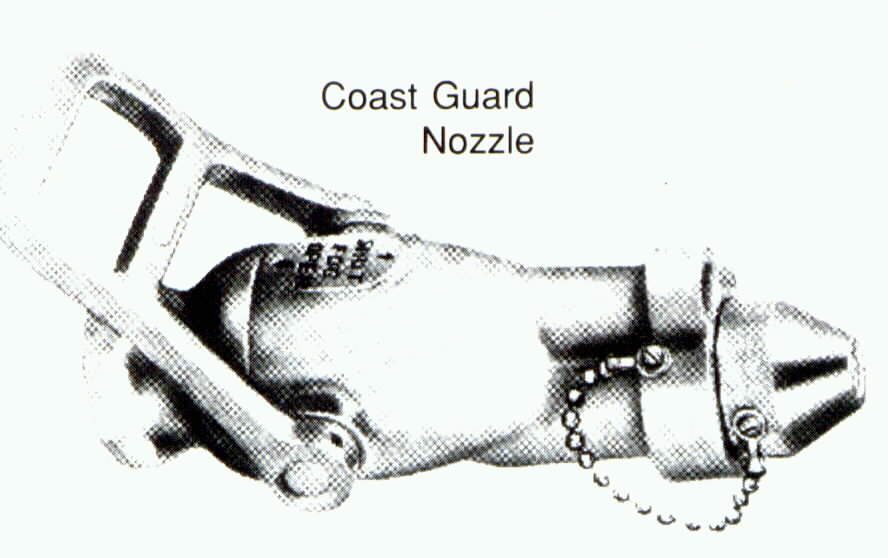

SG-71 COAST GUARD 1 1/2" 510-0085-1 162.027/9/0
SG-70 COAST GUARD  2 1/2" 510-0089-1 162.027/10/0

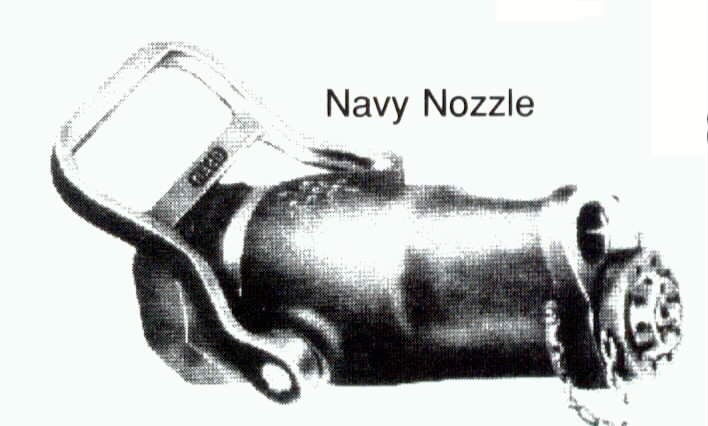

SG-45 NAVY 1 1/2" 10-60691 4AN-810-1385834
SG-47 NAVY 2 1/2" 510-0606-1 4AN-810-1385835



APOLLO STYLE SG45 / SG47




FIRE HOSE NOZZLES



APOLLO STYLE 572B
Plain Brass Nozzle




ALUMINUM WITH BRASS SWIVEL NUT - FEMALE



Type: Straight Brass.
Size: 1 1/2" and 2 1/2" NST threads.
Other threads available.
NOT APPROVED BY U.S.C.G



ALUMINUM WITH BRASS SWIVEL NUT - COMPLETE


BRASS PIN LUG

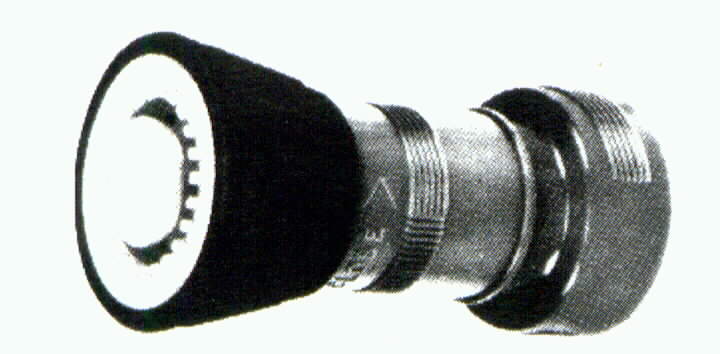

APOLLO STYLE 517NRP
Plastic Fog Nozzle





Type: Allows instant adjustment of water flow from straight stream to fog.
Size: 1 1/2" and 2 1/2" NST thread
NOT APPROVED BY U.S.C.G

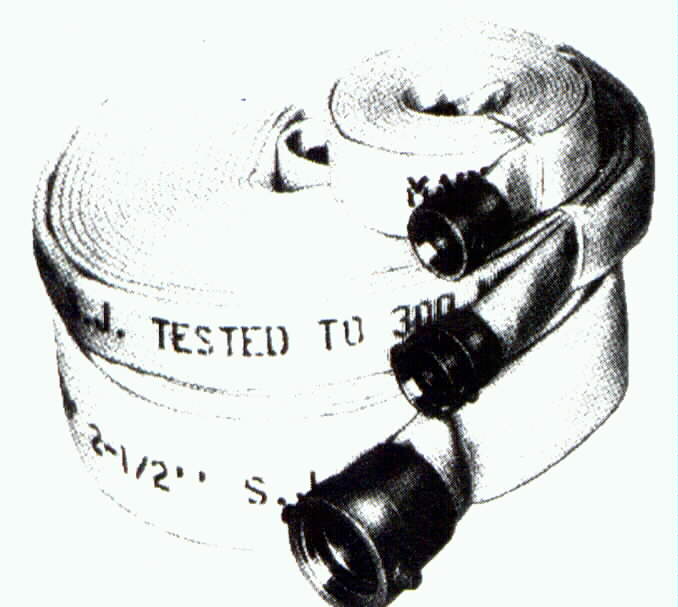

#94 U.S. Coast Guard Approved Fire Hose

APOLLO STYLE 94
Single Jacket, Rubber-lined Fire Hose


Apollo #94DJ Double Jacket 500# Test Hose
 is also available.

Jacket: 100% Polyester to eliminate rot.
Test: 300# Underwriters Laboratories to U.S. Coast Guard regulations.
Sizes: 1 1/2"  and 2 1/2"
Lengths: 50 ft., 75 ft., 100 ft.
Couplings: Brass NST expansion ring. Storz type available.



Anodized aluminum

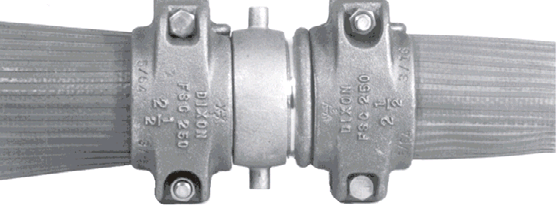

For rubber soft suction fire hose. Collar segments are held in place with allen screws. These should be properly tightened and checked annually.

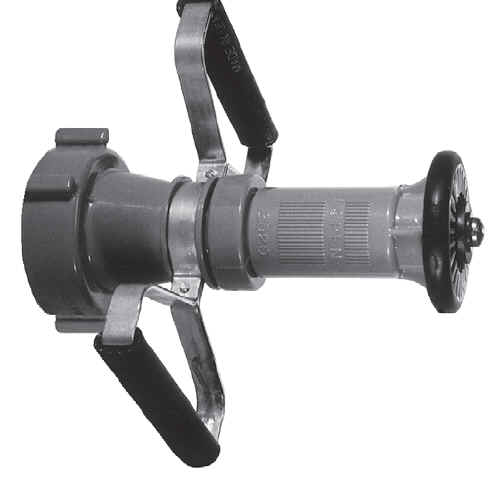

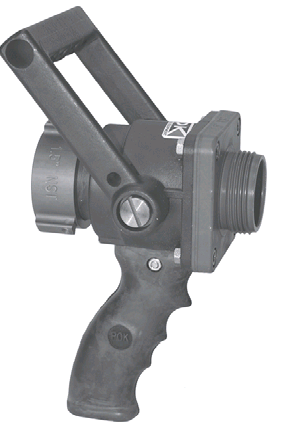

ALUMINUM BALL SHUT-OFF -BOLTED STYLE

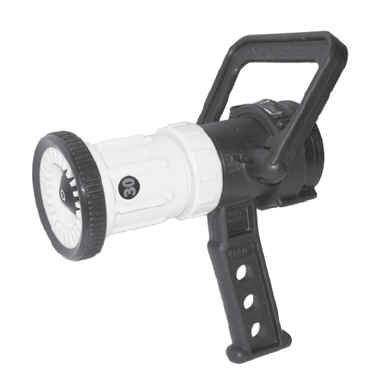

THERMOPLASTIC BALL SHUT-OFF NOZZLES
