ApolloPAK
Mechanical Packing for Pumps & Valves
Product Information Page
Feet
per pound guide - click here
|
| |
|
PTFE Packings
|
|
|
|
|

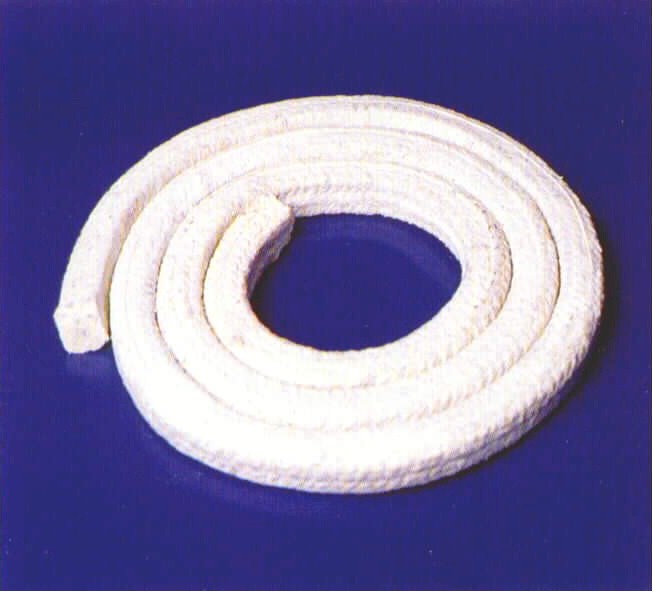

ApolloPAK 2200
| Description |
Style 2200
is a PTFE/synthetic fiber packing that can replace PTFE/Fiber
packings in many services. Similar in construction to Apollopak 2000,
Style 2200 is an economical non-Fiber alternative. |
| USE |
Pumps and
valves where an Fiber packing cannot be used due to environmental
conditions |
Temperature
Limit |
350° F
(180° C) |
| pH RANGE |
0
- 10 |
| Shaft Speed |
2300 feet
per minute |
|
| |
|
|
|
|
|
|

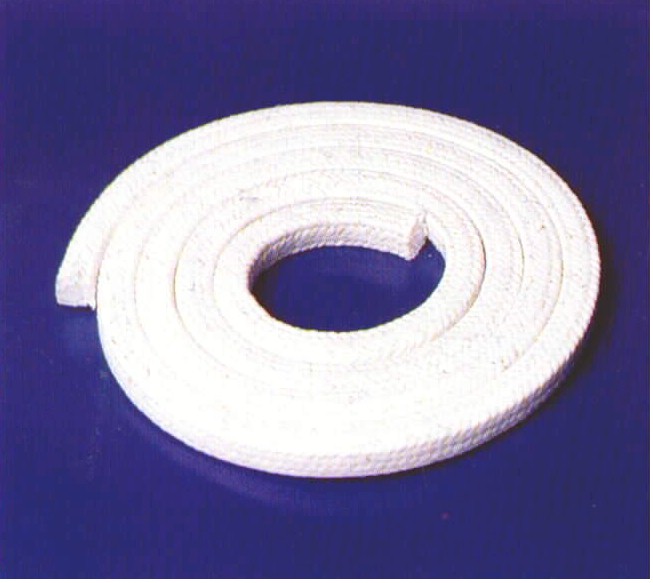

ApolloPAK 2280
| Description |
Style
2280 is a pure PTFE packing that is well-suited for chemical pump
service. Pre-shrunk PTFE fibers are impregnated with PTFE suspensoid,
resulting in a soft, resilient packing. An inert break-in lube has
been added for ease of start-up |
| USE |
Chemical
Pumps |
Temperature
Limit |
500°
F (260° C) |
| pH RANGE |
0
- 14 |
| Shaft Speed |
1500
feet per minute |
| SPECS: |
MIL-P-24396
Type B |
|
| |
|
|
|
|
|
|
ApolloPAK 2290
| Description |
Style
2290 is a chemical valve packing interlock-braided from dry pure PTFE
suspensoid, resulting in a soft, resilient packing. An inert break-in
lube has been added for ease of start-up. |
| USE |
Chemical
Valves |
Temperature
Limit |
500°
F (260° C) |
| pH RANGE |
0
- 14 |
| Shaft Speed |
Use
Style 2280 for pump service. |
| SPECS: |
MIL-P-24396
Type A |
|
|
|
Pump & Valve Packings |
|
|
|
|
ApolloPAK 3300
| Description |
Style 3300
is interlock-braided from W.L. Gore's revolutionary GFO fiber.
Combining many of the best qualities of PTFE and graphite, this
non-Fiber interlock-braided packing offers exceptional all-around
performance. GFO fiber is a graphite-filled PTFE yarn. |
| USE |
Pump &
Valves |
Temperature
Limit |
550° F
(290° C) |
| pH RANGE |
0
- 14 |
| Shaft Speed |
4000 feet
per minute |
|
| |
|
|
|
|
|
|

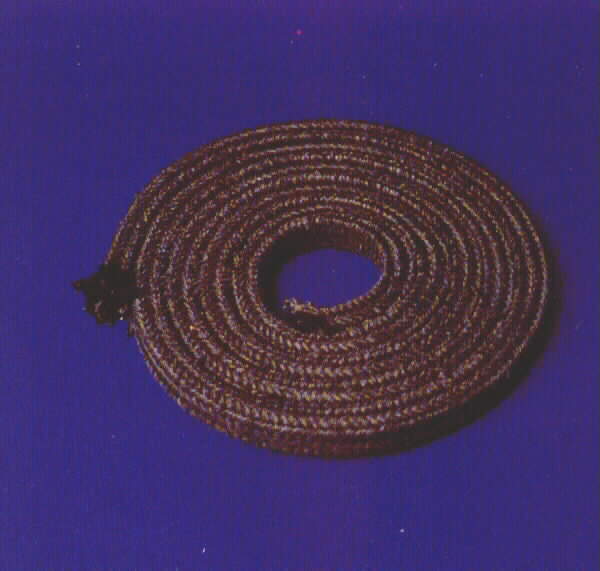

ApolloPAK 380
| Description |
Style 380 is
interlocked-braided from pure yarns. Graphite particles are added as a
blocking agent. Carbon and graphite packings offer excellent chemical
resistance and exceptional thermal conductivity. Not to be used in
strong oxidizers. |
| USE |
Chemical
Pumps & Valves |
Temperature
Limit |
650° F
(345° C) in oxidizing environments
1200° F (650°C) in steam. |
| pH RANGE |
0 - 14 |
| Shaft Speed |
5000 feet
per minute |
|
| |
|
|
|
|
|
|
ApolloPAK 399
| Description |
Style 399 is
interlock-braided from the highest quality pure graphite yarns.
Graphite particles are added as a blocking agent. Carbon and graphite
packings offer excellent chemical resistance and exceptional thermal
conductivity. Not to be used in strong oxidizers. |
| USE |
Chemical
Valves & Pumps |
Temperature
Limit |
800° F
(430° C) in oxidizing environments.
1200°F (650° C) in steam.
6000°F (3315° C) in non-oxidizing environments. |
| pH RANGE |
0
- 14 |
| Shaft Speed |
Unlimited. |
|
| |
|
|
|
|
|
|
ApolloPAK 3100
|
Description |
Style 3100
is interlock-braided from aramid fiber yarns that have a light coating
of PTFE. The inherent strength of aramid fiber yields a packing with
exceptional physical strength, making it an ideal choice for slurries or
abrasive media. |
|
USE |
Pump
applications where a packing with high physical strength is required. |
Temperature
Limit |
500° F (260°
C) |
|
pH RANGE |
3 -
11 |
|
Shaft Speed |
1900 feet
per minute |
|
|
|
Flax & Reciprocating Pump
Packings |
|
|
|
|

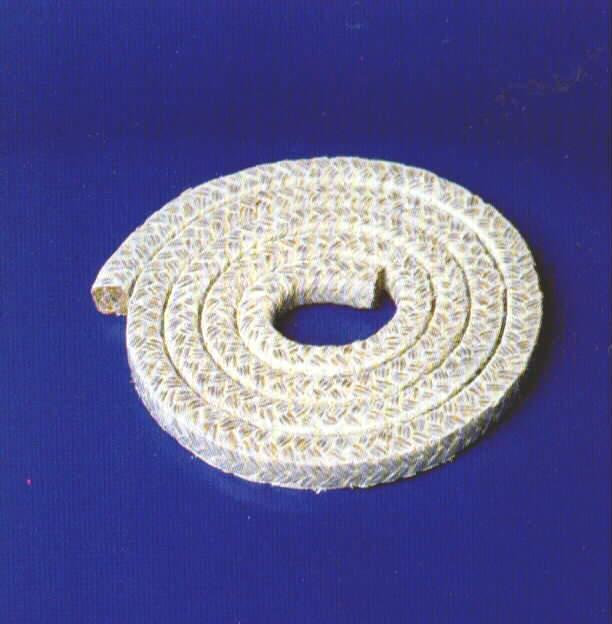

ApolloPAK 2300
| Description |
Style 2300
is a premium stern tube and rudder post packing. The finest long line
flax is impregnated with special oils and PTFE; then square-braided
into a soft and flexible packing. A final impregnation of PTFE results
in a smooth white finish. |
| USE |
Marine
and Paper Mill Applications |
Temperature
Limit |
212° F
(100° C) |
| pH RANGE |
5
- 9 |
| Shaft Speed |
1800 feet
per minute |
|
| |
|
|
|
|
|
|

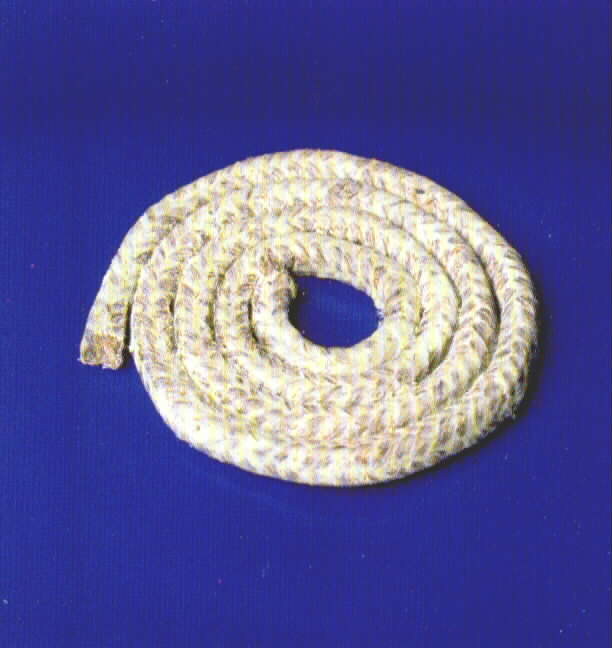

ApolloPAK 90
| Description |
Style 90 is
a square-braided from medium line flax fibers treated with tallow and
marine waxes. Used for water and brine. |
| USE |
Pumps,
Stern Tubes and Rudder Posts Against Fresh and Salt-water. |
Temperature
Limit |
212° F
(100° C) |
| pH RANGE |
6
- 8 |
| Shaft Speed |
1900 feet
per minute |
|
| |
|
|
|
