Marine
& Industrial Applications |
Tank
Cleaning Machines |
|
|
Tank
Cleaning Machines
Product Information Page |
| |
|
|
|
|
|

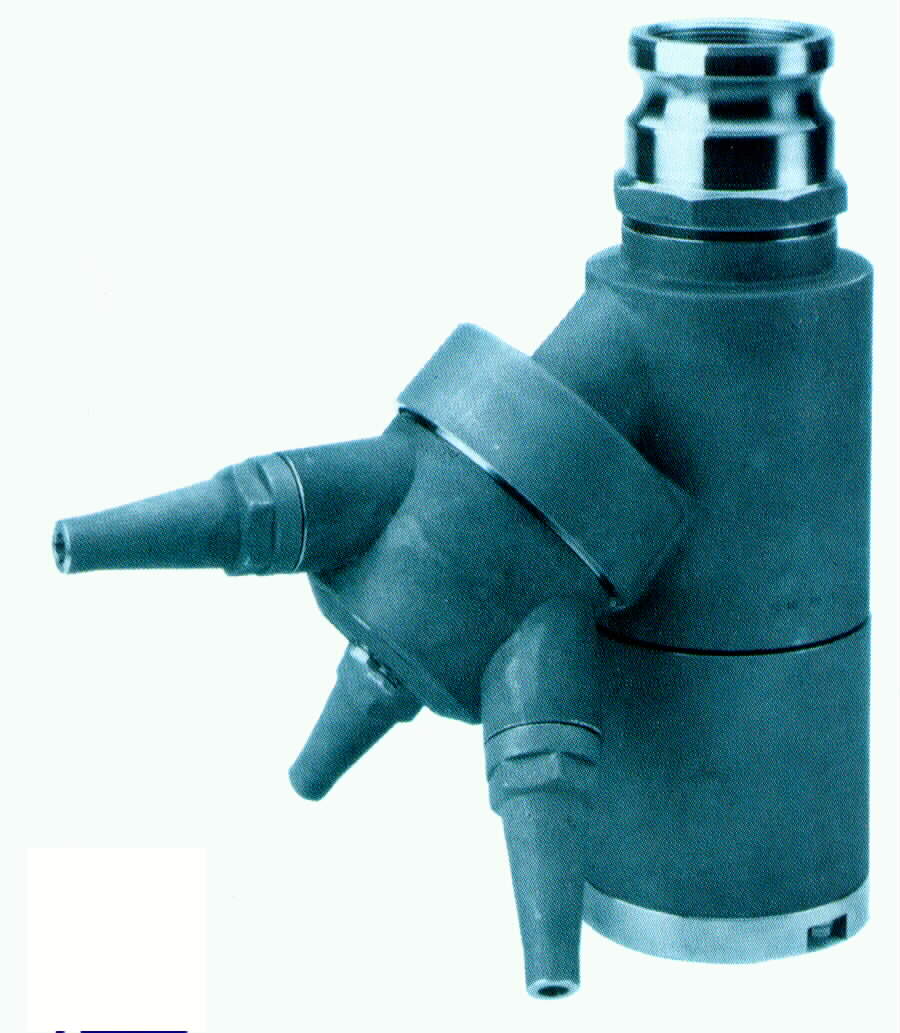

Spherical
Series
Directional MODEL 180  |
| Performance |
| Jet
Indexing: |
2°
Triple Nozzle Only |
| Operating
Temperature: |
Up to
250°F (121° C) |
| Inlet
Pressure Range: |
40-350
psig (2.8-24 bar) |
| Flow
Range: |
40-350
gpm (9-79 cubic m/hr) |
| Nozzle
Housing Rotation: |
0.5 -
15 r.p.m. |
| Effective
Reach: |
80+
feet (24.4 m) |
|
|
|
Construction
-
Castings
: 316-L Stainless Steel
or Non-sparking Silicon Bronze (SPECIAL
ORDER ONLY)
-
Ceramic
Coated Rotor Shaft
-
Stainless
Steel Internal Gears
-
Chrome
Plated Gear Shafts for longer wear
-
Carbon-Fiber
Reinforced Thermoplastics for main casting bearings
-
Tungsten
Carbide Thrust and Rotary Bearings
-
PTFE
Based or Oil-impregnated Bronze Gearbox Bearings
-
Fluoropolymer
or Elastomer O-rings to Suit Application
-
Spring-Energized
Teflon Seals
-
Optional
Stainless Steel Filter Screen in Inlet Stem
|
|
Dimensions
MODEL 180 |
| Height |
12
1/4" (31.1 cm) |
| Width |
12
1/8" (30.8 cm) |
| Weight
Bronze |
31 lbs.
(14.10 kg) |
| Weight
Stainless |
29 lbs.
(13.17 kg) |
| Minimum
Tank Opening |
12
1/4" (31.1 cm) |
|
Inlet
Stem Connections |
| 2
" NPT Female (Standard) |
| 2
1/2" (Standard) |
| 2
1/2" Quick Disconnect (Optional) |
| Special
Couplings Available Upon Request |
|
|
|
Performance
Graph
Click picture to
enlarge
 |
Washing
Patterns
20 / 40 / 60
Revolutions
Click picture to
enlarge
 |
|
|
|
|
|
|
SPHERICAL
SERIES

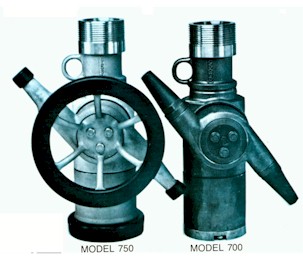

MARINE MODELS 700
& 750
|
|
Performance |
| Jet
Indexing: |
6°
Triple Nozzle Only |
| Operating
Temperature: |
Up to
250°F (121° C) |
| Inlet
Pressure Range: |
40-350
psig (2.8-24 bar) |
| Flow
Range: |
40-350
gpm (9-79 cubic m/hr) |
| Nozzle
Housing Rotation: |
0.5 -
15 r.p.m. |
| Effective
Reach: |
See
Performance Graph below. |
|
|
|
|
|
|
|
Construction
-
Castings
: 316-L Stainless Steel
or Non-sparking Silicon Bronze
-
Ceramic
Coated Rotor Shaft
-
Stainless
Steel Internal Gears
-
Chrome
Plated Gear Shafts for Longer Wear
-
Carbon-Fiber
Reinforced Thermoplastics for Main Casting Bearings
-
Tungsten
Carbide Thrust and Rotary Bearings
-
PTFE
Based or Oil-impregnated Bronze Gearbox Bearings
-
Fluoropolymer
or Elastomer O-rings to Suit Application
-
Spring-Energized
Teflon Seals
-
Optional
Stainless Steel Filter Screen in Inlet Stem.
In
Compliance With ISO 9003 |
Dimensions
MODEL 700 |
| Height |
13
3/4" (35 cm) |
| Weight
Bronze |
29 lbs.
(12.2 kg) |
| Weight
Stainless |
28 lbs.
(12.7 kg) |
| Minimum
Tank Opening |
7"
(17.8 cm) |
Dimensions
MODEL 750 |
| Height |
12 1/14"
(36 cm) |
| Weight
Bronze |
32 lbs.
(14.5 kg) |
| Weight
Stainless |
31 lbs.
(14.1 kg) |
| Minimum
Tank Opening |
10
1/4" (26 cm) |
|
Inlet
Stem Connections |
| 2 "
NPT Female (Standard) |
| 2
1/2" (Standard) |
| 2
1/2" Quick Disconnect (Optional) |
| Special
Couplings Available Upon Request |
|
| |
|

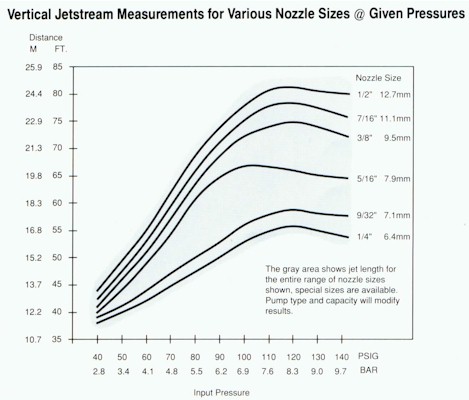

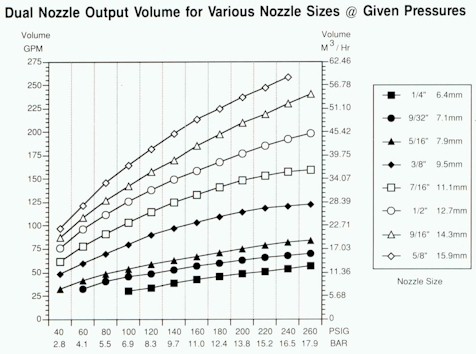

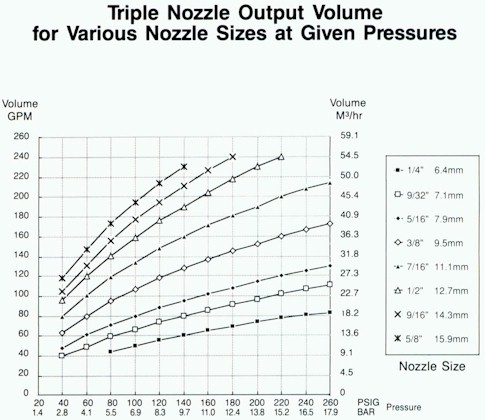

Performance
Graphs
Click picture to
enlarge
|

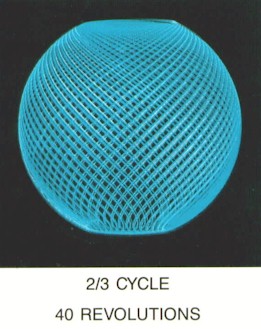

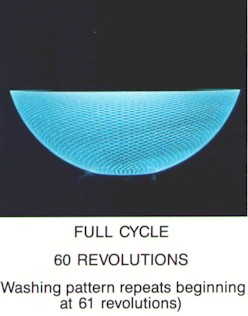

Washing
Patterns
20 / 40 / 60
Revolutions
Click picture to
enlarge |
| |
|
|
 |
|
|
|
|
