   SMA3-A Submersible Pump
  Apollo Pumps
 Model SMA3-A - Submersible AIR-POWERED Pump
Quality System ISO9001 Certified
 Product Information Page





Model

Discharge Pipe Size

Capacity

SMA3-A

3” (75mm)

Up to 300 gpm

(1,140 liters/ minute)

Weight

Height

Built

59 lbs

(26.55 Kg)

23“

(575 mm)

Aluminum for lightweight handling.




Handling Capacity

Powered by a compressed air power motor with easily adjusted variable flow and pressure control.
Up to 65-ft (19.8 meters) shut-off head.

Handles mud, leaves, twigs, sand, sludge mill scale, Bilge gunk, sewage and trash laden.

Also handles most substances common to the chemical  process, marine, mining paper pulp and petrochemical industries … even handles small solids.



End User Benefits

    Immediate use
    Self–priming
    Pumps practically everything that flows
    High capacity, low head operation
    Keeps pumping without clogging
    Foolproof design
    Continuous automatic lubrication
    Built-in speed limiting governor
    Self-draining
    Sturdily built
    Can run dry without damage
    Fits through openings as small as 14”
    diameter (350 mm)




Performance Curves
Click on the chart to enlarge

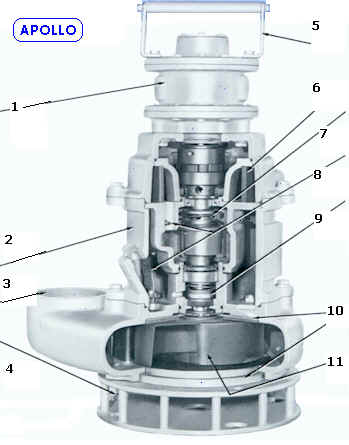

No. Description
1 Motor
2 Air-inlet & exhaust muffler
3 3-inch (75mm) NPT female pipe thread discharge
4 Trash-type, plated steel strainer
5 Carrying handle
Completely sealed aluminum housing encloses all USERal parts
6 Large built-in air filter
7 Built-in speed limiting governor
8 Automatic oiler
9 Face-type USERal shaft seal
10 Replaceable war plates
11 Two-vane trash-type open impeller
