Portable Gas Freeing Fans

APOLLO Model 200x Series portable gas freeing fans
are stainless steel, high quality, low maintenance units designed for
oil and chemical tankers and barges. DNV-approved, these fans
feature epoxy-coated nylon propellers.

Download PDF file

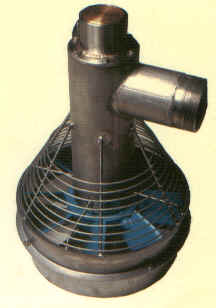

Model 2001T Water-Driven

SPECIFICATIONS

Weight:	30 lbs (14kg)
Working Pressure:	45-210 PSI (3-14 bar)
Air flow at 6 bar (90psi):	8300 m 3 /hour
Air flow at 11 bar (165psi):	12000 m 3 /hour
Water usage at 6 bar (90psi):	30 m 3 /hour
Water usage 11 bar (165 psi):	40 m 3 /hour
Diameter of mounting ring:	360mm
Diameter of fan propeller:	309mm

Model 2004T Air-Driven

SPECIFICATIONS

Weight:	20 lbs (14kg)
Working Pressure:	30-120 PSI (2-8 bar)
AIR flow at 6 bar (90psi):	4770 m 3 /hour
AIR flow at 11 bar (165psi):	6850 m 3 /hour
AIR usage at 6 bar (90psi):	50 m 3 /hour
Diameter of mounting ring:	360mm
Diameter of fan propeller:	311mm
